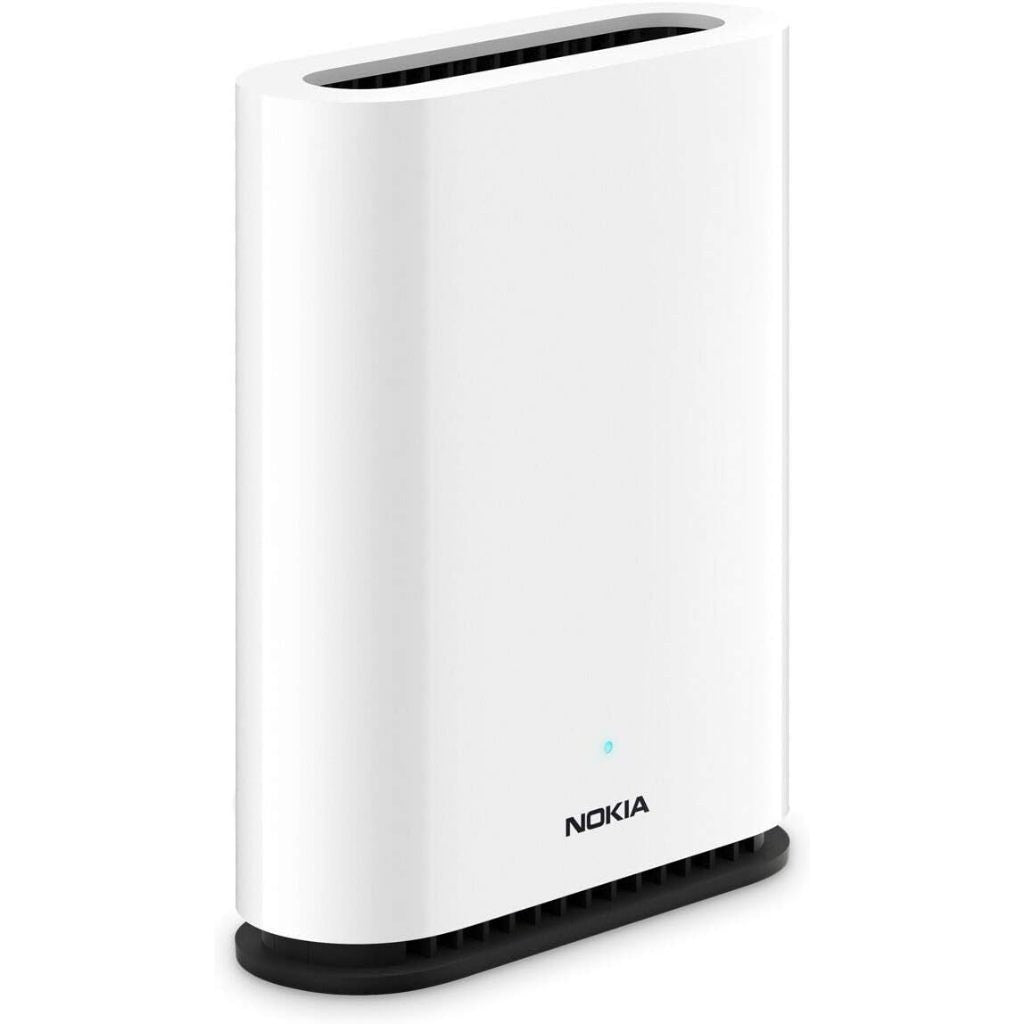

Nokia BEACON 1

Create or extend a Nokia WiFi mesh network with Wi-Fi 5

Nokia WiFi mesh creates a seamless Wi-Fi network throughout the home

Fast and reliable Wi-Fi with a capacity of AC1200 for typical Wi-Fi usage

Simple, app-based setup and management

Unstoppable Wi-Fi with mesh middleware

Intelligent channel selection ensures that the optimal Wi-Fi channel is always selected, avoiding any Wi-Fi glitches

Dynamic backhaul management ensures Nokia WiFi Beacons are perfectly connected with one another

Fast Wi-Fi

2x2 MIMO on 2.4 GHz

2x2 MIMO on 5 GHz

PHY rate of AC1200

Supports HD and 4K video streaming

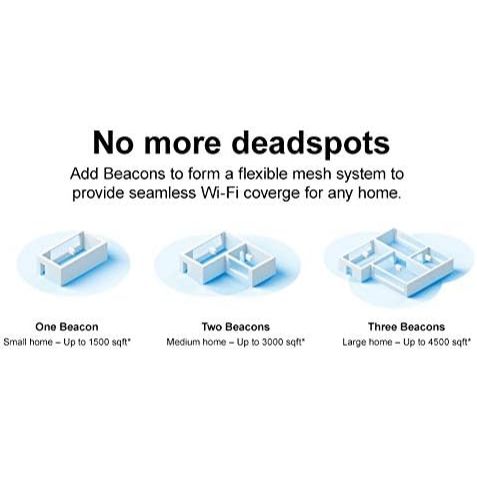

Whole home Wi-Fi coverage

One unit covers up to 140 m2 (1500 sq. ft)

Use up to 4 units in a single network to cover a large or multi-story house

Backhaul can be Ethernet cable/Wi-Fi

The Beacon 1 uses proprietary mesh technology

Physical characteristics

Height: 168 mm (6.6 in)

Width: 115 mm (4.5 in)

Depth: 42 mm (1.6 in)

Weight: 0.41 kg (0.90 lb)

Wireless LAN interfaces

802.11b/g/n 2.4 GHz: 2x2 MIMO

802.11ac 5 GHz: 2x2 MIMO

Maximum EIRP on 2.4 GHz up to 500 mW and 5 GHz up to 1 W (dependent on hardware variant and local regulations)

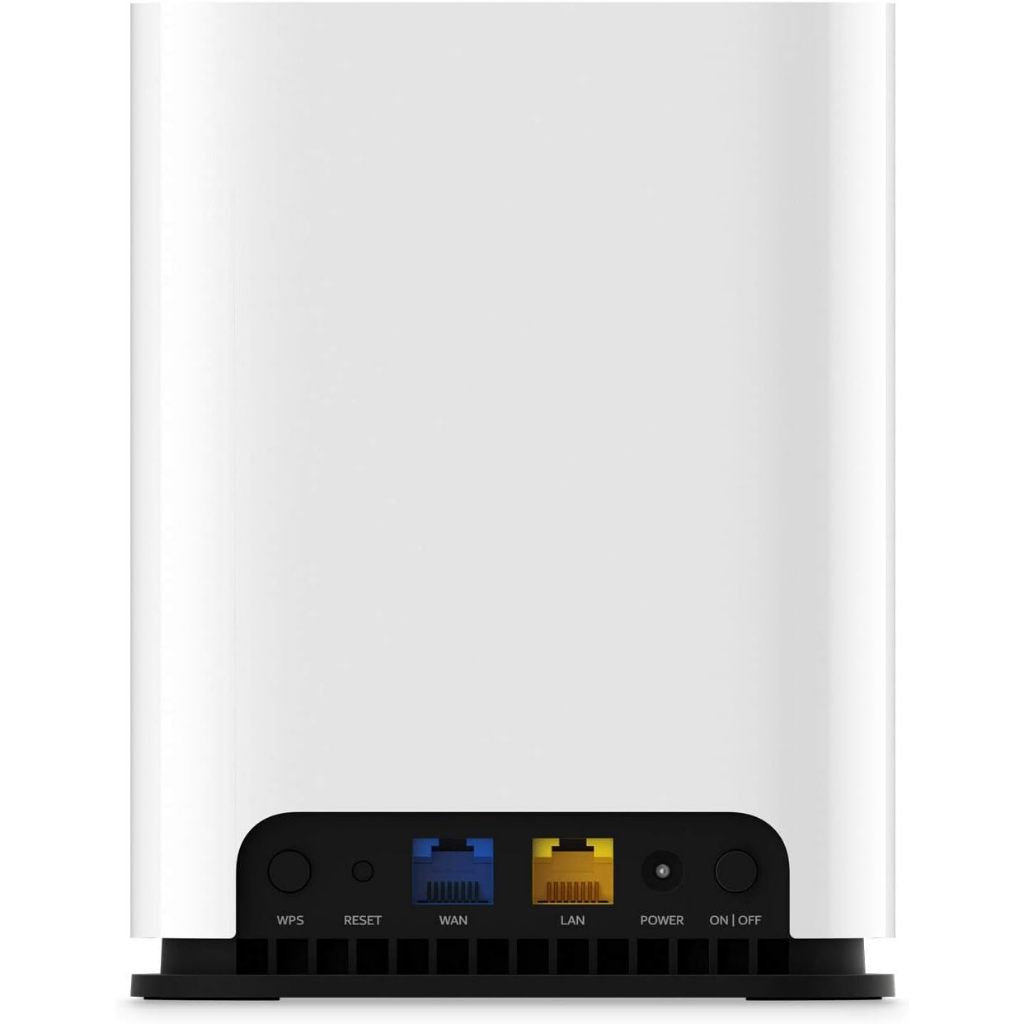

Ethernet interfaces

WAN side: One 10/100/1000Base-T interface with RJ-45 connector

LAN side:

Beacon 1: One 10/100/1000BaseT interface with RJ-45 connector
